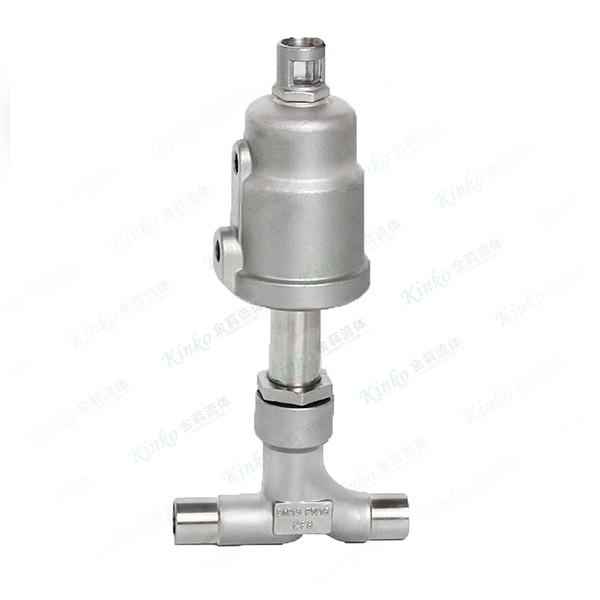

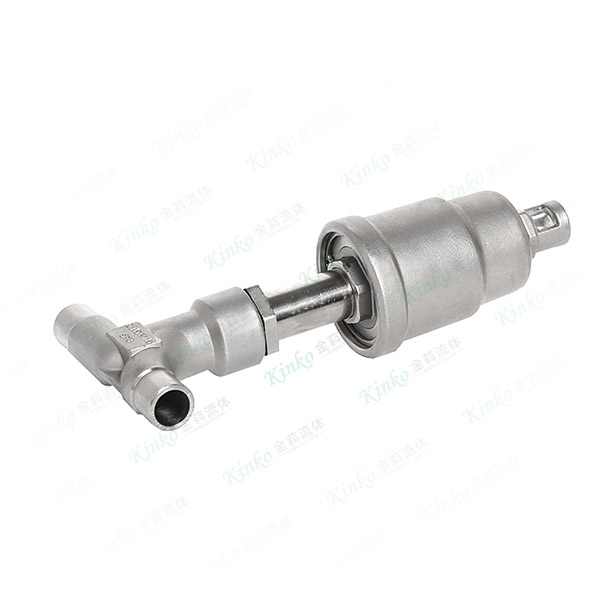

All-stainless steel pneumatic straight-through Angle seat valve

◆ Applicable media: Water, liquid, neutral gas, water vapor.

◆ Temperature range: Polytetrafluoroethylene :-20℃+ 180℃

◆ Ambient temperature: -20℃+ 60℃

◆ Viscosity: maximum 600mm ² /s

◆ Installation: Anywhere

◆ Flow direction: Up/down the valve seat

◆ Control medium: Air or neutral gas

◆ Control pressure: 0.4MPa-0.8MPa

◆ Technical Data

Welding joint :Φ19-Φ89

Valve body :CF8 / CF8M

Valve seat seal :PTFE

Valve stem seal :PTFE

Piston seal :NBR
