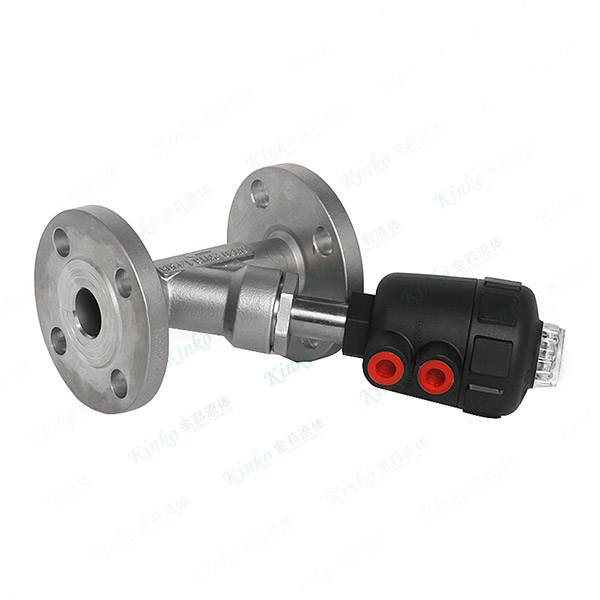

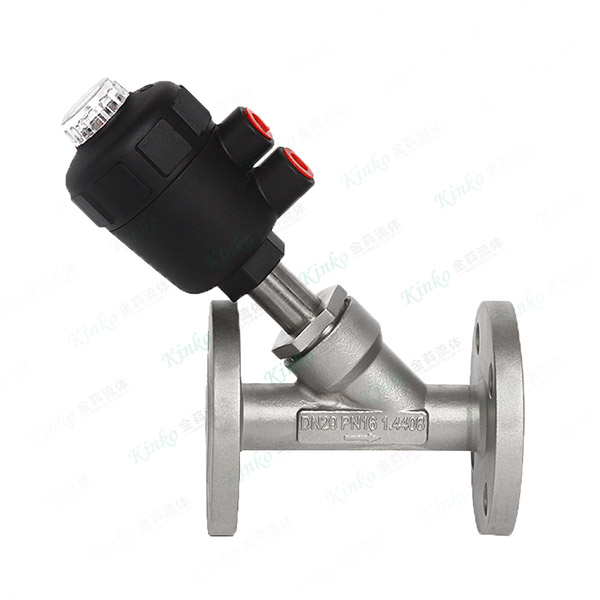

Flanged pneumatic Angle seat valve

The external advanced Angle seat valve has a self-adjusting sealing cover between the overflow port and the slider. The Angle seat structure of the valve body can achieve a large flow rate, especially when compared with ordinary stop valves.

"Selection

◆ Control function: Always open

The PPS actuator housing is suitable for ambient temperatures ranging from +5℃ to +130℃

Double-acting actuator without reset spring

◆ Flange connection

◆ Electronic position feedback

◆ Independently adjustable stroke limit, suitable for high and low flow rates

◆ Manual emergency switch

◆ Namur adapter applicable to pilot valves

Technical parameters

◆ Pressure range: 0-16bar

◆ Medium temperature: -20℃ to +180℃

◆ Ambient temperature: -20℃ to +60℃

◆ Valve body material: Stainless steel

◆ Sealing material: Polytetrafluoroethylene (PTFE)

◆ Actuator housing: Polyamide PA

◆ Medium: Neutral gas, air, water

◆ Manufacturing standards: GB, ISO, DIN

◆ Flange standards: JB, GB, HG, ASME, DIN, JIS, ISO
