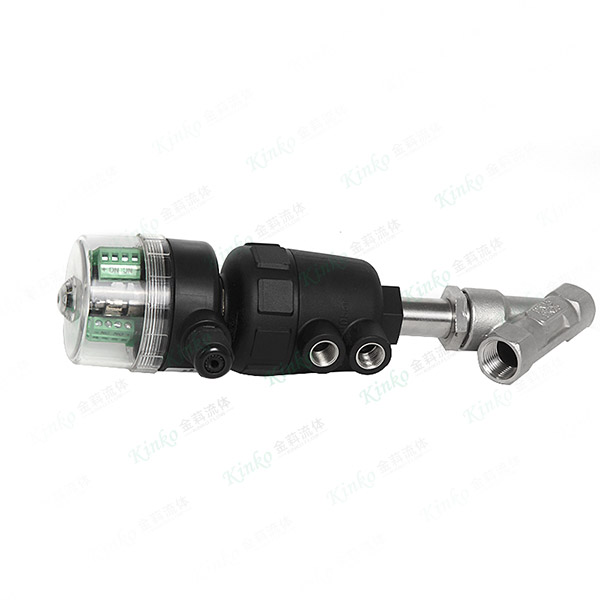

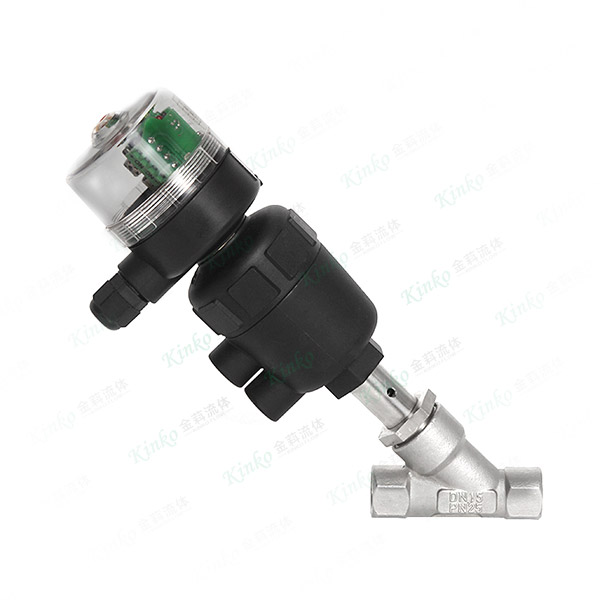

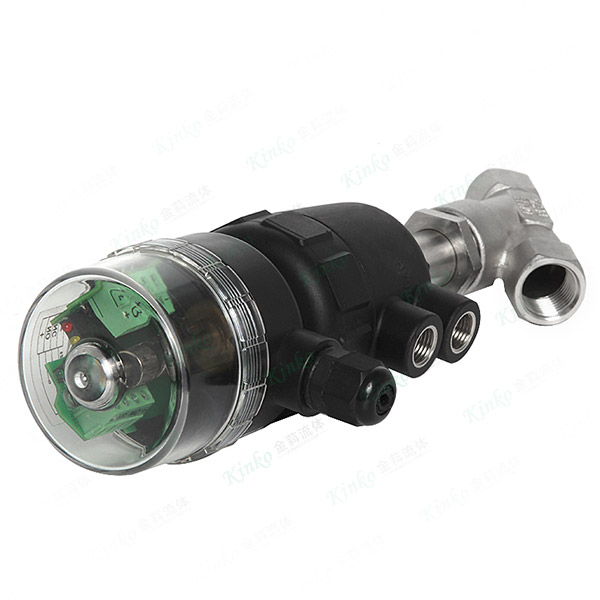

Regulating pneumatic threaded Angle seat valve
Regulating pneumatic threaded Angle seat valve
Regulating pneumatic threaded Angle seat valve
Regulating pneumatic threaded Angle seat valve
Regulating pneumatic threaded Angle seat valve
Regulating pneumatic threaded Angle seat valve
Regulating pneumatic threaded Angle seat valve
Regulating pneumatic threaded Angle seat valve

Regulating pneumatic threaded Angle seat valve

◆ Nominal diameter:

DN10-DN100

◆ Valve body material:

SS304, SS304L, SS316, SS316L

◆ Connection method:

Thread, welding, quick installation, flange

◆ Control mode:

Switch type, regulating type, manual control, pneumatic control, electric control

◆ Product Overview:

The pneumatic Angle seat valve maintains flow rate and saves space. It is a guided Angle seat valve operated by a single-acting pneumatic actuator with spring safety protection. When in use, it should be selected as normally open or normally closed.

◆ Application fields:

Beer and beverage filling equipment, gas industry.

◆ Working principle:

When not in operation, the valve is usually closed (open) due to the spring force. When the actuator piston is acted upon by compressed gas, the valve opens (closes). The double-acting form controls the opening and closing of the valve by compressed gas.

This series of intelligent electrical valve positioners is a valve opening degree regulator based on a microprocessor. The valve opening degree can be set by external input signals. The positioner uses automatic control algorithms and PWM control technology to quickly and accurately adjust the valve opening degree, thereby controlling the flow rate of the fluid pipeline.
