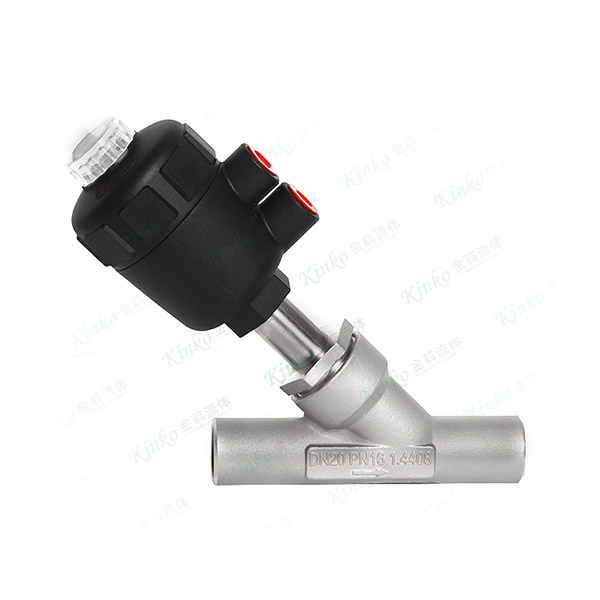

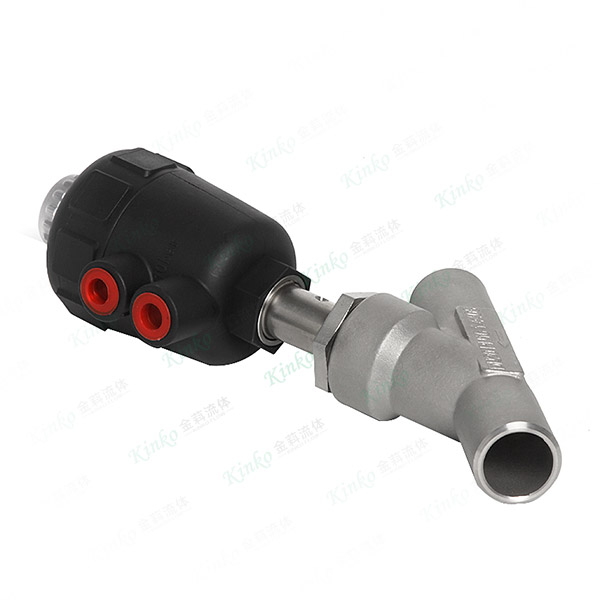

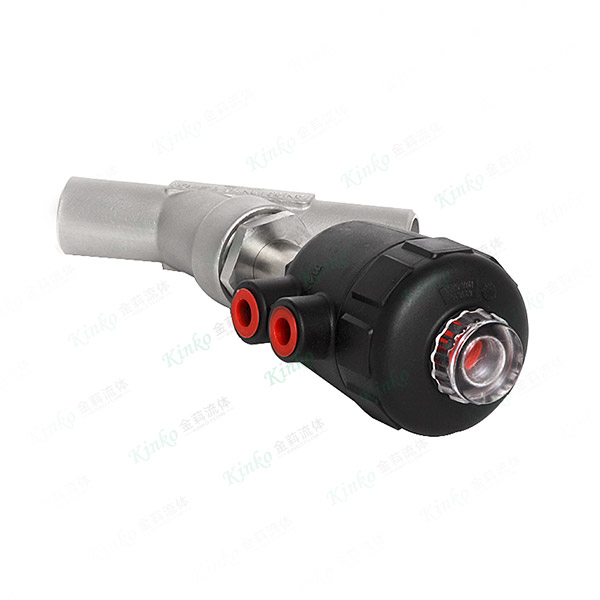

Pneumatic welded Angle seat valve - large

◆ Technical Data

Size: DN15-DN80

Thread: G1/2"-G3

Main material: CF8M

Valve seat material: Polytetrafluoroethylene

Valve stem material: SS316

Piston sealing ring: Nitrile rubber

◆ Applicable media: Water, liquid, neutral gas, water vapor.

◆ Temperature range: Polytetrafluoroethylene :-20℃+ 180℃

◆ Ambient temperature: -20℃+ 60℃

◆ Viscosity: maximum 600mm ² /s

◆ Installation: Anywhere

◆ Flow direction: Up/down the valve seat

◆ Control medium: Air or neutral gas

◆ Control pressure: 0.4MPa-0.8MPa
