◆ Specification and model:
AT32-AT400
◆ Shell material:
Die-cast aluminum
◆ Control Mode
Air source: 0.3-0.8Mpa
◆ Working technical conditions
1. Working medium
Impurity particles in dry or lubricated air or non-corrosive gas media are less than 30μm.
2. Air source pressure
3bar~8bar.
3. Medium ambient temperature:
Standard: -20℃ to +80℃
Low temperature: -40℃ to +80℃
High temperature: -20℃ to +160℃
4. Travel adjustment
Two positions: 0° and 90°
It has an adjustment range of ±5°
5. Application scenarios: Indoor or outdoor installation

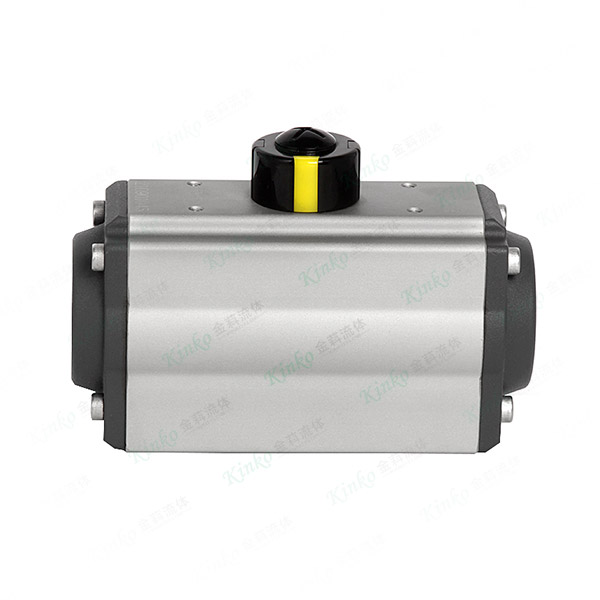

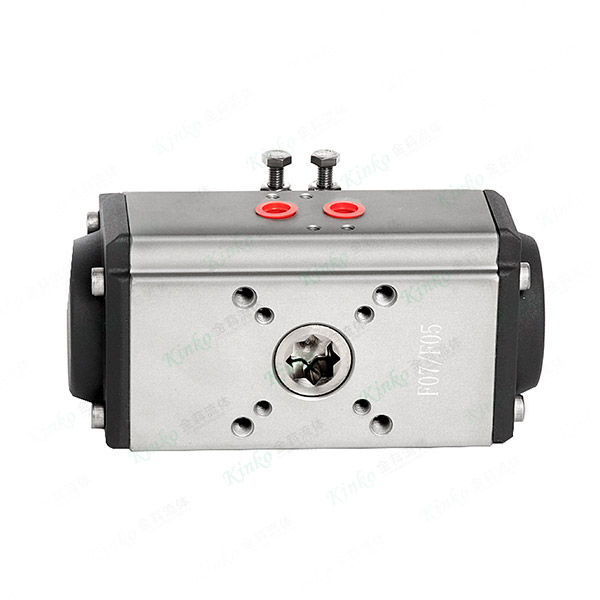

◆ Pneumatic Product Overview:
A pneumatic actuator is an actuating device that uses air pressure to open, close or regulate valves. It is also known as a pneumatic actuator mechanism or pneumatic device, but is generally commonly referred to as a pneumatic head. Pneumatic actuators are sometimes also equipped with certain auxiliary devices. Commonly used ones include valve positioners and handwheel mechanisms.
