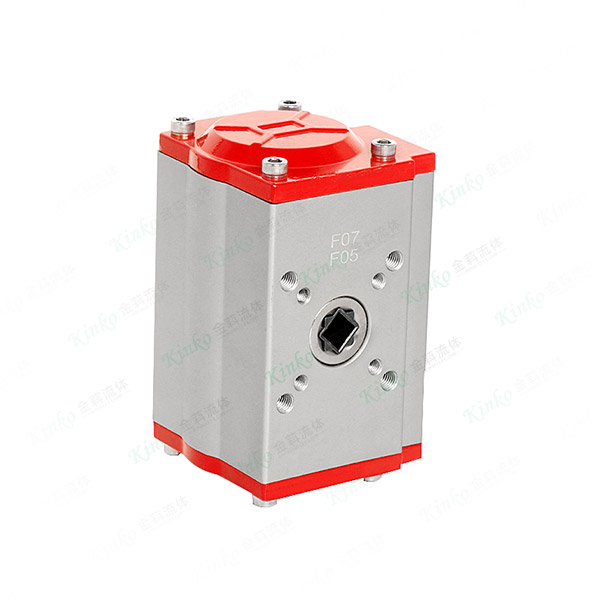

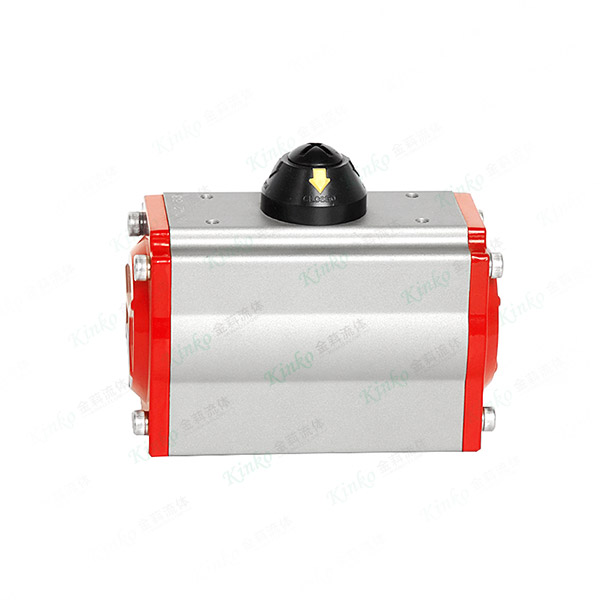

Pneumatic actuator - red

◆ Specification and model:

AT32-AT400

◆ Shell material:

Die-cast aluminum

◆ Control Mode

Air source: 0.3-0.8Mpa

◆ Working technical conditions

1. Working medium

Impurity particles in dry or lubricated air or non-corrosive gas media are less than 30μm.

2. Air source pressure

3bar~8bar.

3. Medium ambient temperature:

Standard: -20℃ to +80℃

Low temperature: -40℃ to +80℃

High temperature: -20℃ to +160℃

4. Travel adjustment

Two positions: 0° and 90°

It has an adjustment range of ±5°

5. Application scenarios: Indoor or outdoor installation

◆ Pneumatic Product Overview:

A pneumatic actuator is an actuating device that uses air pressure to open, close or regulate valves. It is also known as a pneumatic actuator mechanism or pneumatic device, but is generally commonly referred to as a pneumatic head. Pneumatic actuators are sometimes also equipped with certain auxiliary devices. Commonly used ones include valve positioners and handwheel mechanisms.
